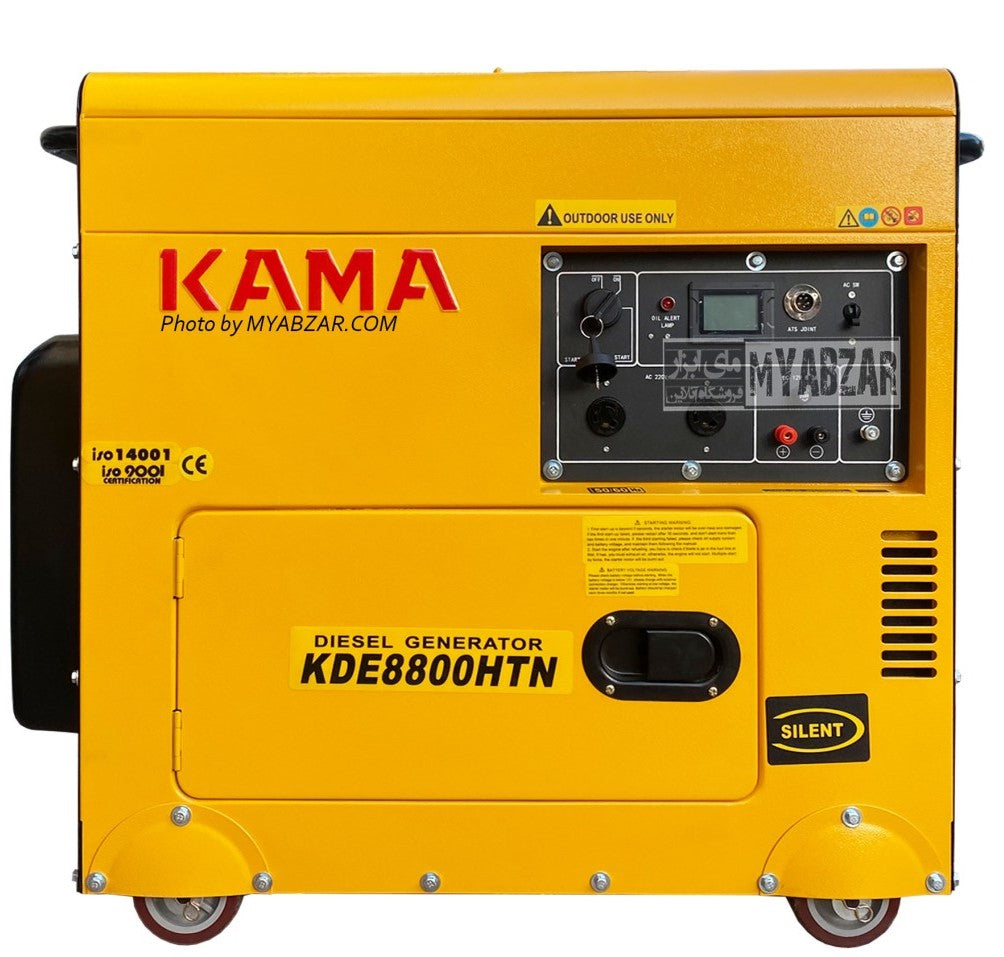

Kama Silent Diesel Generator 6.5Kva KDE8800HTN

Kama Silent Diesel Generator 6.5Kva KDE8800HTN

Regular price $1,100.00 USD
Regular price $1,300.00 USD Sale price $1,100.00 USD
Sale Sold out

MODEL KDE8800HTN
Rated frequency 50 Hz
Rated output power 6 kw
Max output power 6.5 kw
Rated voltage 230 V
Rated current 26.1 A
Rated rotation speed 3000 rpm
Single phase
Power factor 1
Insulation class F
Number of poles 2
Exciting Mode
Automatic regulator (with AVR)
Panel Form: Normal Panel
Output voltage: 230 V
Output form: Locking socket x2
DC output: 12V 8.3A
Size: 930mmx530mmx840mm
Net weight: 150kg
Noise level 47 dba/7m
Structural form: Silent type

Engine Specifications:
Engine model: KM195FE
Engine Type: Single cylinder, vertical, 4-stroke, direct injection
Number of cylinders-bore*stroke 1-95*75mm
1-95*75
Displacement 532 ml
Rated output power 8/3000 Kw/rpm
Compression ratio 19:1
Engine speed 3000
Compression-ignition
Air-cooled
Lubrication system
Compression-spray
Start-up mode
Electric start
Lube Brand SAE10W30 (above CD grade)
Lubrication oil volume 1.65L
Starting motor capacity[12V 1KW
Fly-wheel generator capacity 100W
Battery capacity 12V 36Ah
Specific fuel consumption 256 g/kw.h
Fuel capacity 15 L
Continuous operation hours 12 Hrs

 مولد كهرباء كينغ ماكس مازوت 6000 شمعة صامت
26.1 أمبير

 دينامو نحاس
ساعات العمل : 12 ساعة
تبريد هواء
واحد بصطون
يستهلك 0.5  ليتر مازوت بالساعة
الوزن 150كغ
3000 دورة بالدقيقة
سعة الخزان 15 ليتر مازوت
