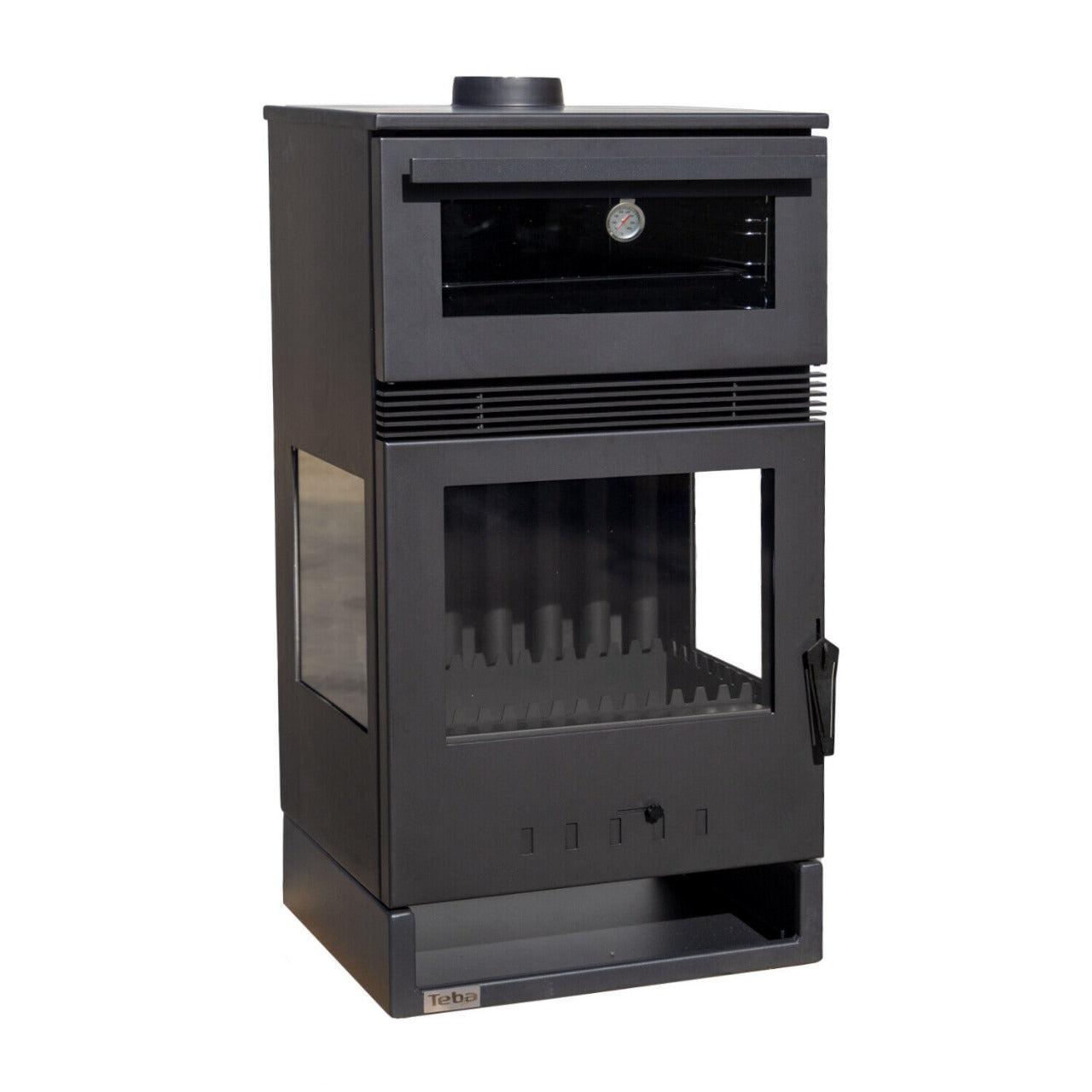

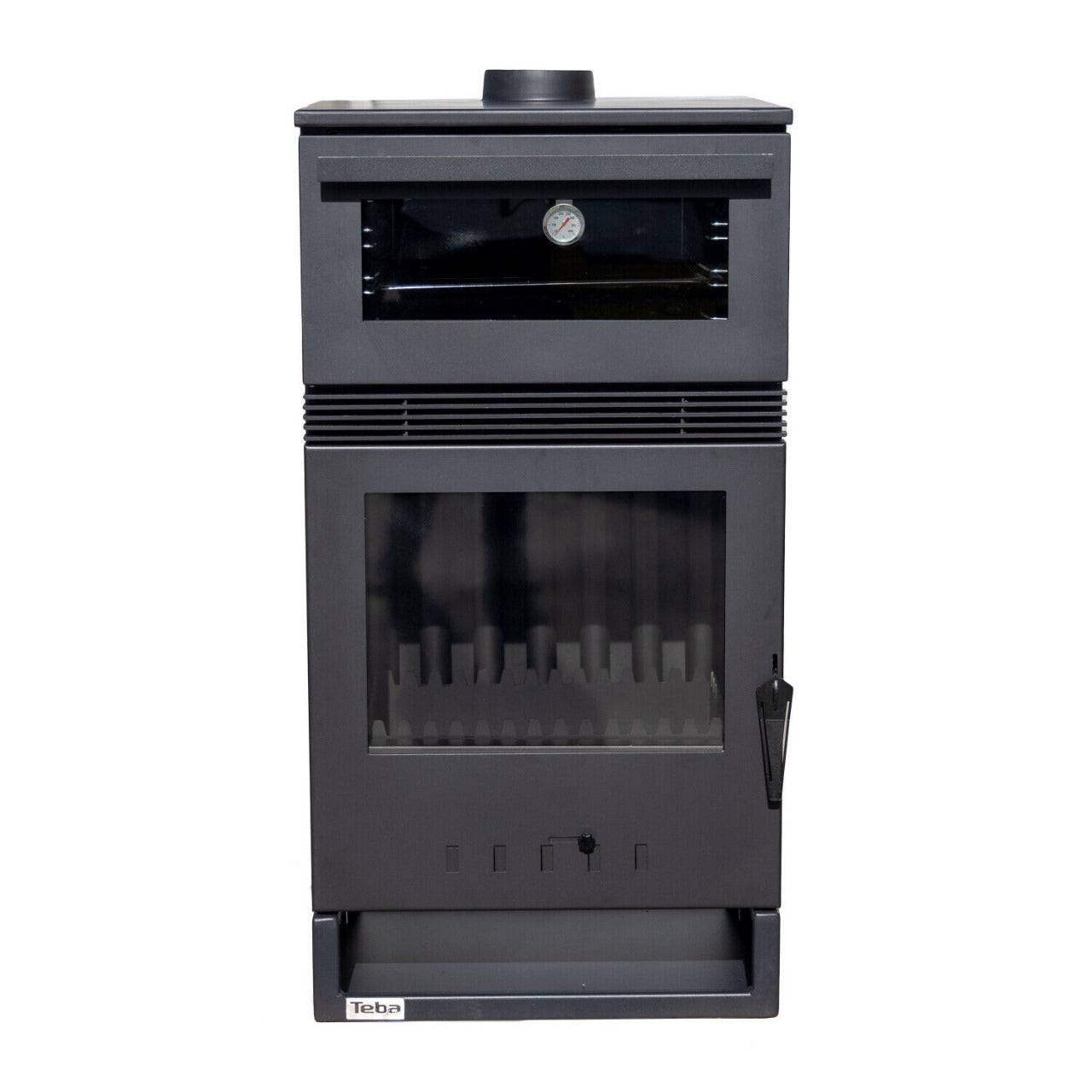

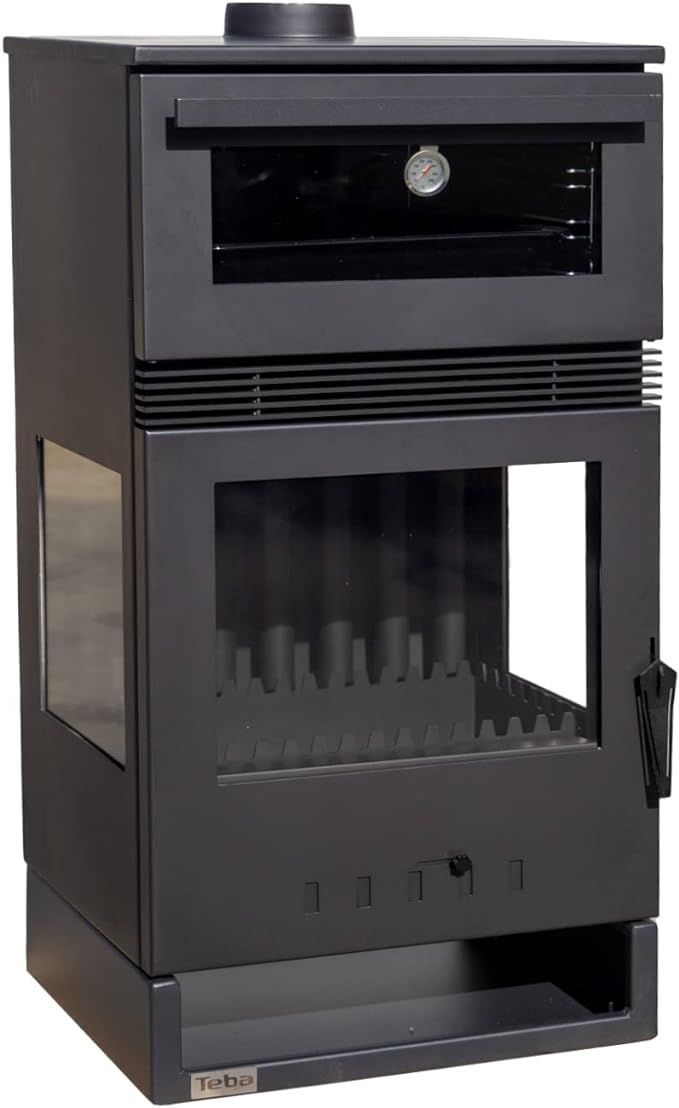

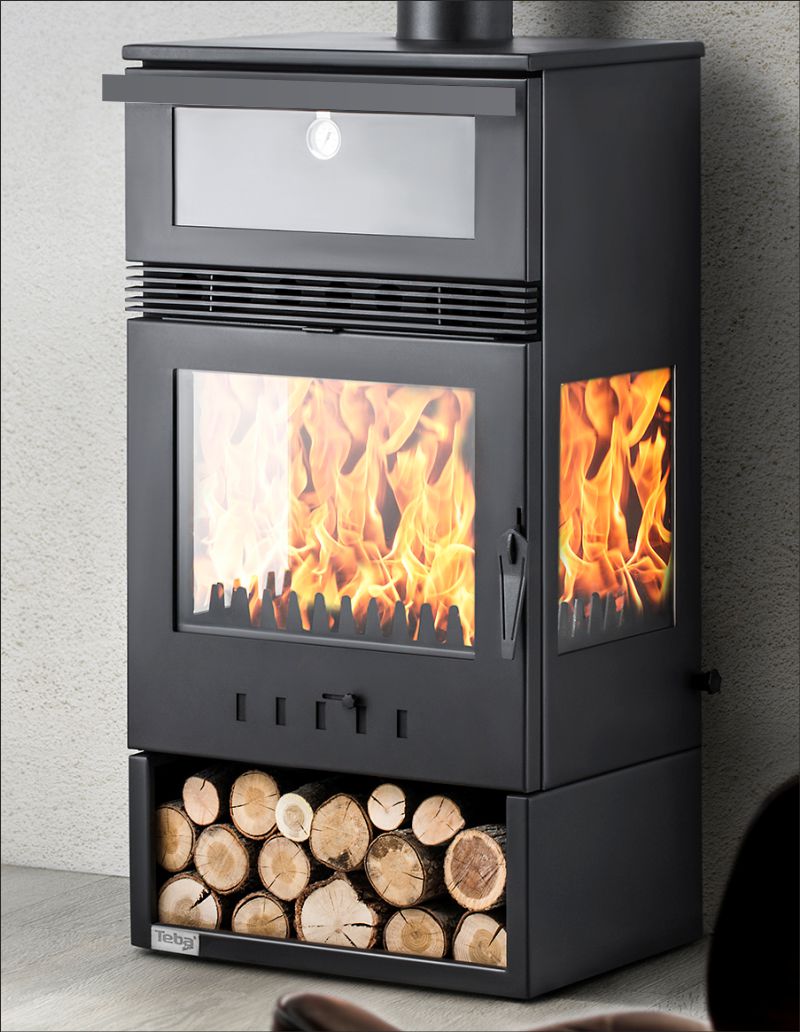

Fireplace TKS-15 3 Sides Glass Professional Baking Oven+Fan

Fireplace TKS-15 3 Sides Glass Professional Baking Oven+Fan

$900.00 USD
$1,000.00 USD $900.00 USD
Sale Sold out
Excellent price-performance ratio
- Heavy, robust design
- Excellent workmanship
- Window flushing for long-lasting enjoyment of the flames
- Elaborately sealed
- Extremely high efficiency (EEK A+) and economical wood consumption
- Versatile Fuels (logs, wood briquettes)
- Warm air exchanger pipes in the combustion chamber
- External combustion air connection
- Capable of continuous

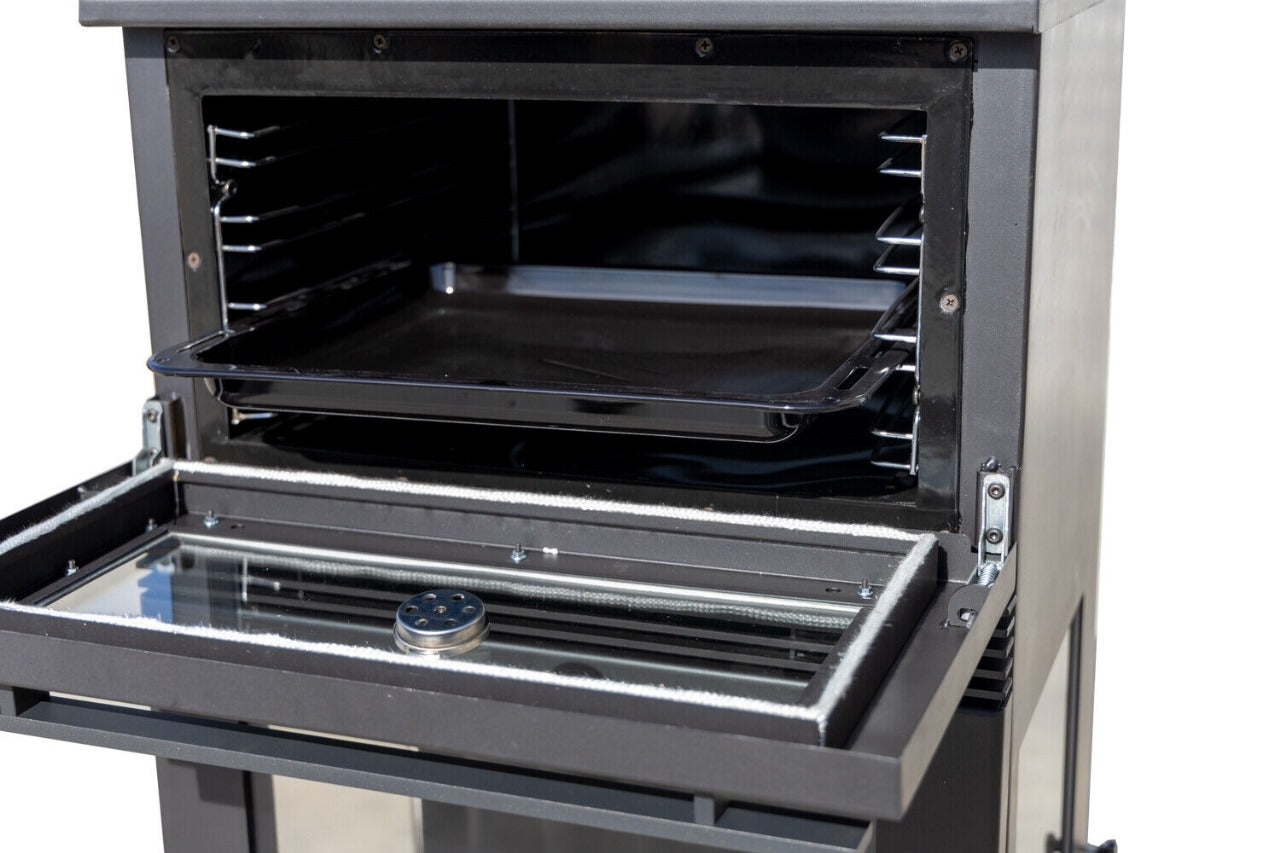

burning - Large baking compartment with thermometer and baking tray (WxDxH approx. 42 x 39 x 18 cm)
- Large combustion chamber (WxDxH approx. 45 x 28 x 40 cm)
- Large Logs (max. approx. 52 cm across)
- Large front window (WxH approx. 45x 33.5 cm)
- Large side windows (WxH approx. 30x 33 cm each)

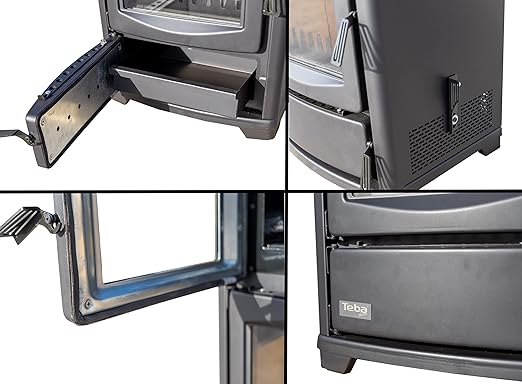

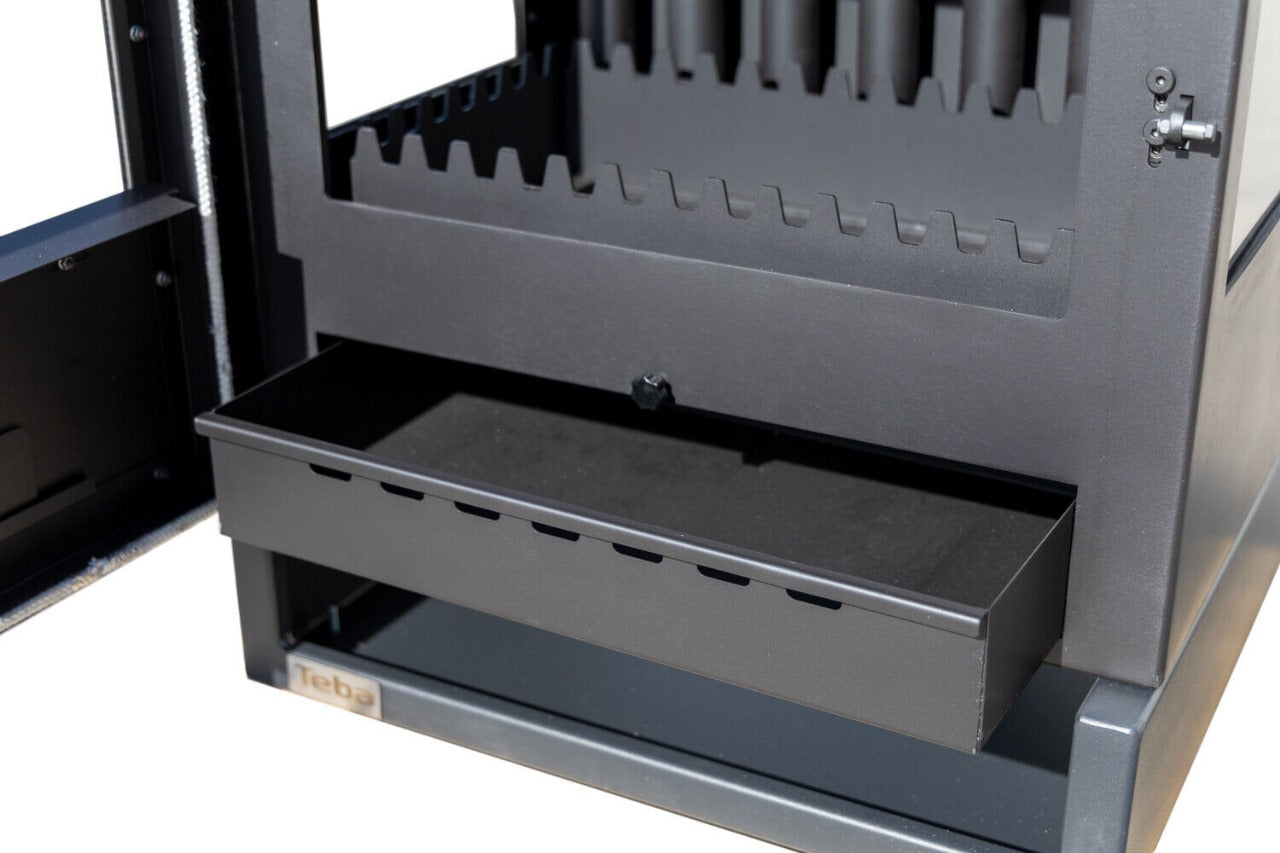

- Ash compartment with large ash box
- Shaking grate - easy transport of the ash into the large one Ash pan
- Wooden compartment
- Window cleaning (cleanliness of the window over a long period of time)
- Separate primary, secondary and tertiary air supply
- Design handle
- 2nd stage of Germany's BImSchV

Technical data:
- Room heat output: 12.84 kW
- Heat output range: 6 kW - 13 kW
- Efficiency Wood: >82%

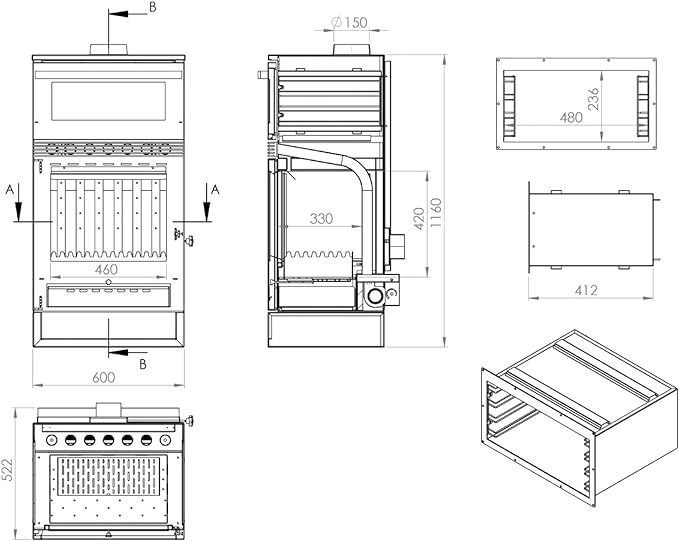

- Dimensions:
   Width approx. 61 cm
   Height approx. 118 cm (with pipe socket approx. 121 cm)
   Depth approx. 52 cm
- Minimum distance from combustible materials (e.g. furniture, wallpaper, wooden paneling):
   50 cm to the back wall,
   80 cm to the side windows,
   100 cm in the radiation area
   (These distances can be less than this in a non-combustible situation.)
- Smoke pipe connection: Ø 150 mm (only possible at the top)
- Approved fuels:
   dry, well-seasoned, natural wood
   Wood briquettes
   Coal has not been tested
- Mean CO content of the exhaust gases based on 13% O2: 765 mg/m³
- Fine dust: 23.8 mg/m³
- NOX content: 125.09 mg/m³
- OGC content: 43.25 mg/m³
- DESIGN 2 ( no self-closing door)
- Weight: approx. 100 kg
