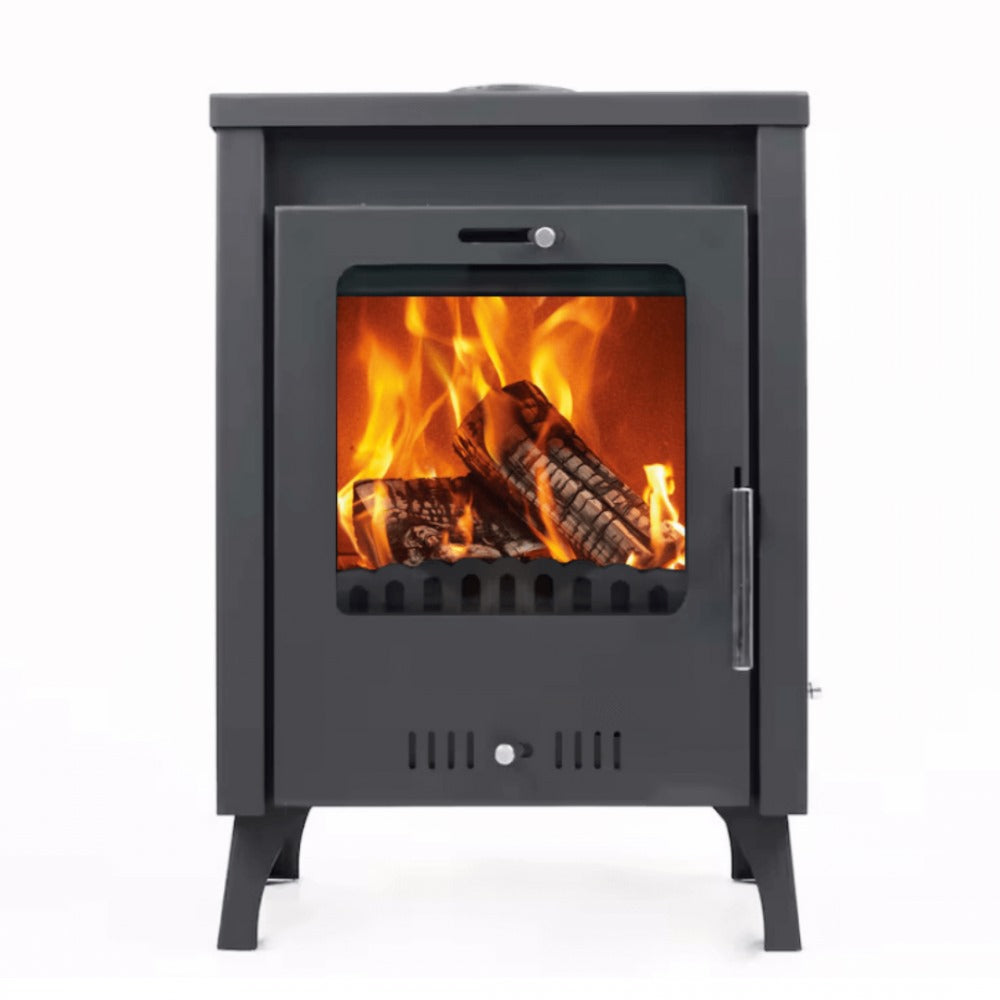

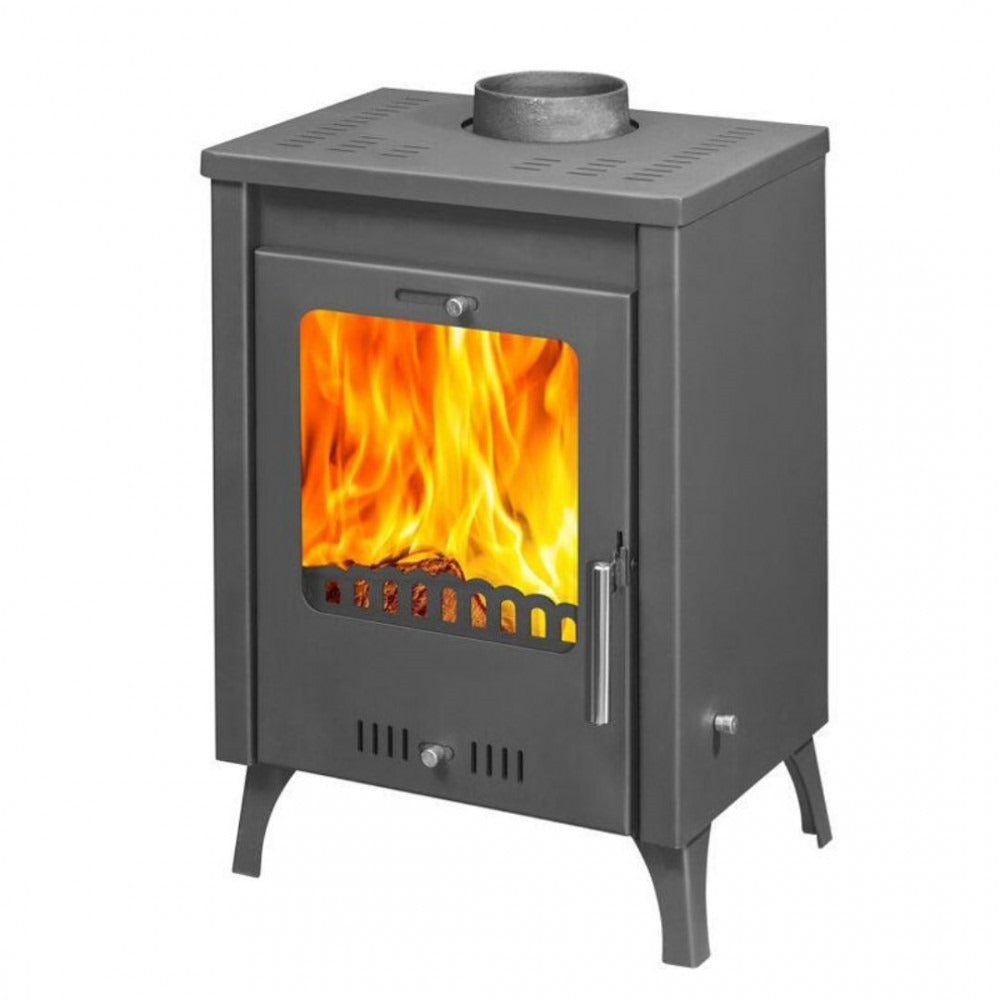

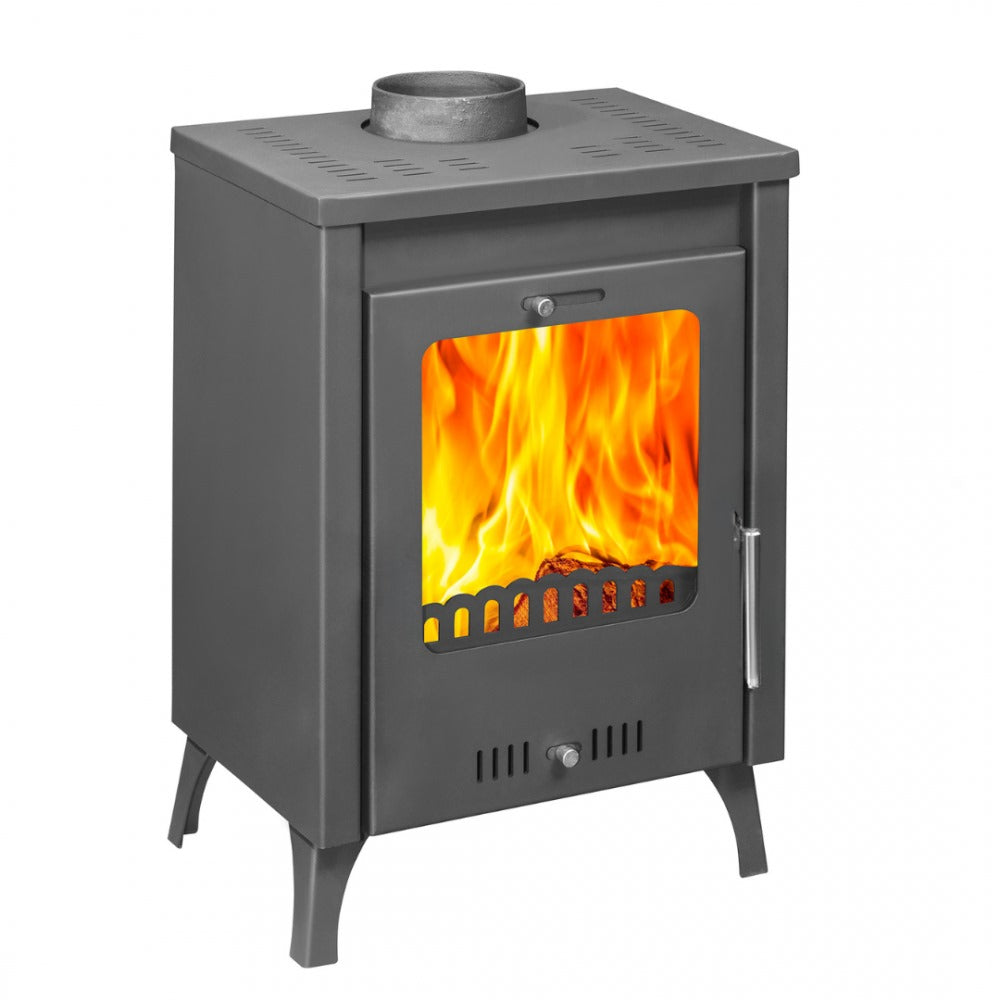

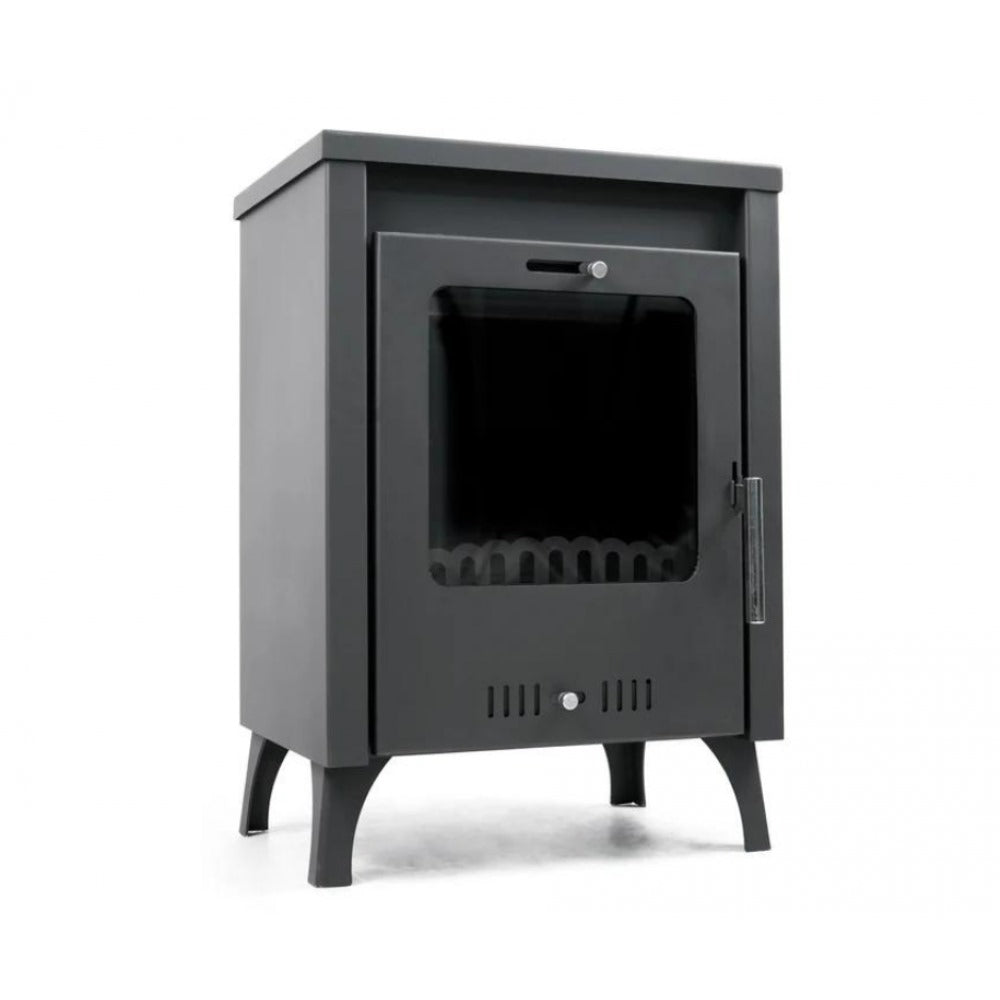

Cast Iron Olypmus fireplace

PRODUCT DETAILS

Body made of sheet steel;

Combustion chamber lined with firebricks that accumulate heat and increase burning temperature;

The combustion chamber is equipped with heat resistant ceramic glass that can withstand temperatures of up to 850°C;

Cast iron grate;

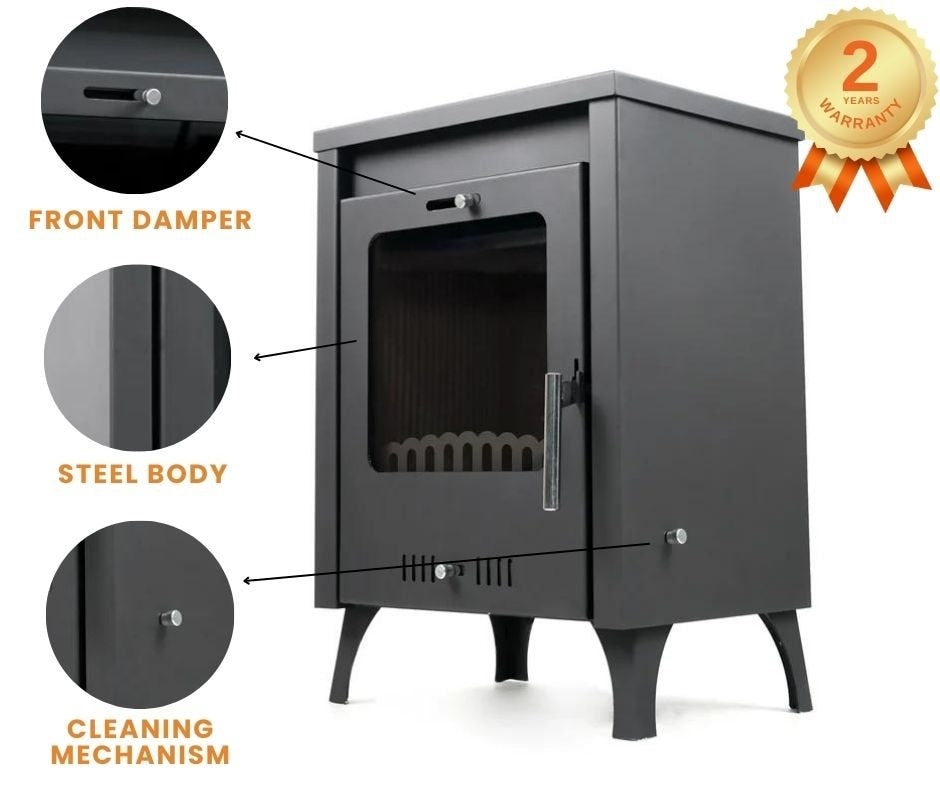

Front damper for controlling the air supply;

Secondary air flap that increases the combustion temperature, efficiency and prevents fumigation of the glass;

Metal door handles.

  Achieving the desired heat output depends on:

the selected fuel with the necessary caloricity and humidity;

its subsequent kindling and refueling;

the regulation of the primary and the secondary air;

the regulation of the draught;

the organizing of effective air heat exchange etc.

Weight (kg) 52.0000

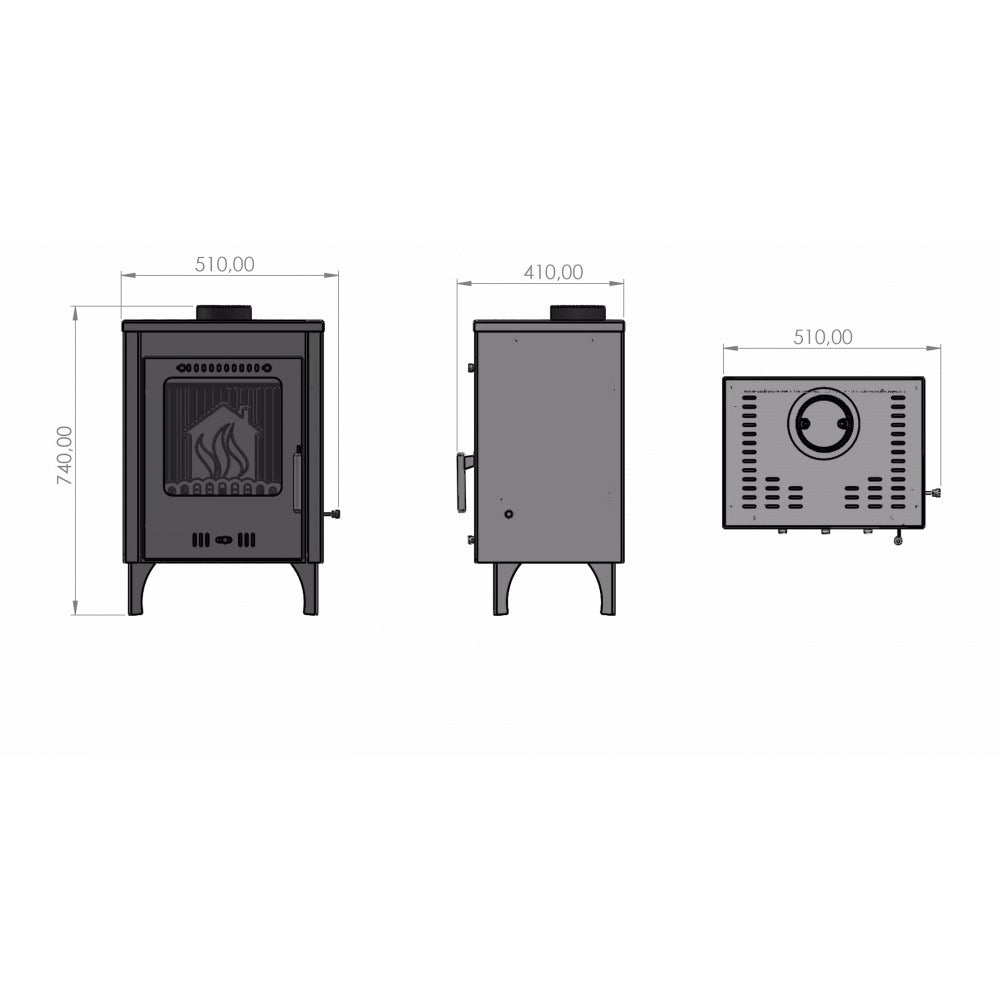

Dimension Depth (mm) 410

Dimension Width (mm) 510

Dimension Height (mm) 740

Nominal thermal power (kW) 7.8

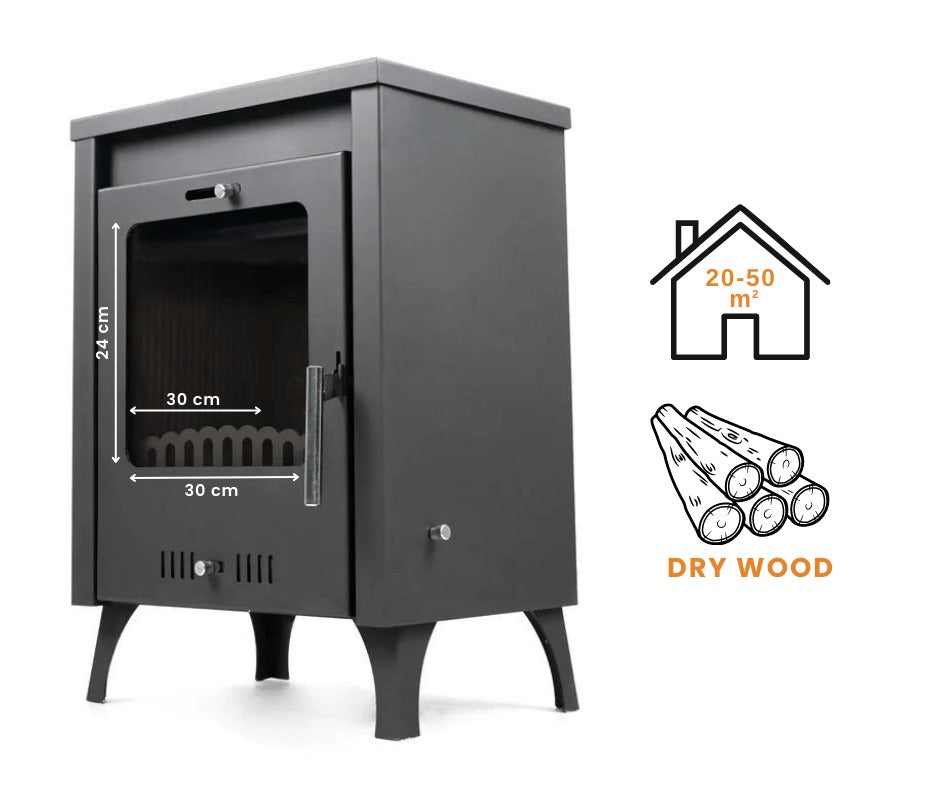

Approximate heating surface (m²) 20-50

Energy efficiency class A+

Flue (mm) 150

Heat output (kW) 7.8

Efficiency (%) 77

Approximate heating capacity (m³) 129

Heating type Natural Convection

Lining None

Placement Center
